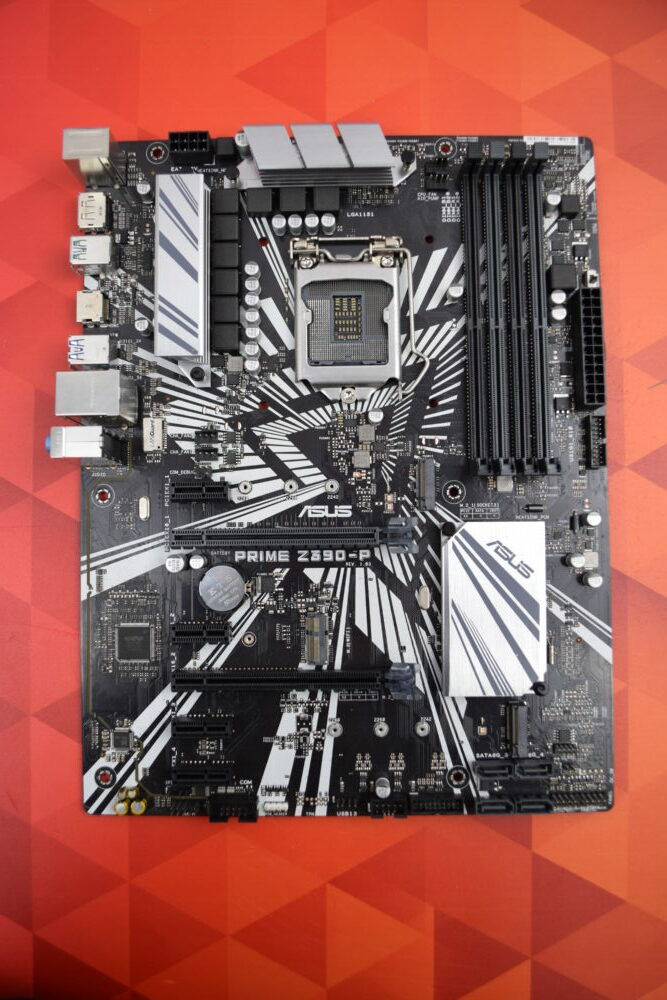

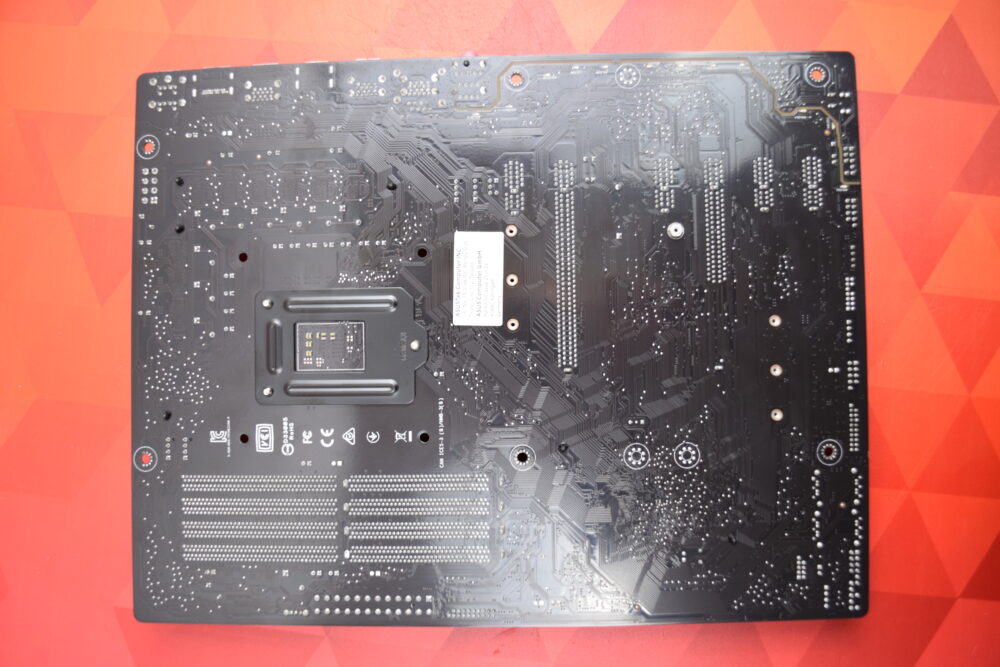

ASUS PRIME Z390-P Motherboard HDMI ATX LGA 1151 Intel – M013

Item introduction

CPU

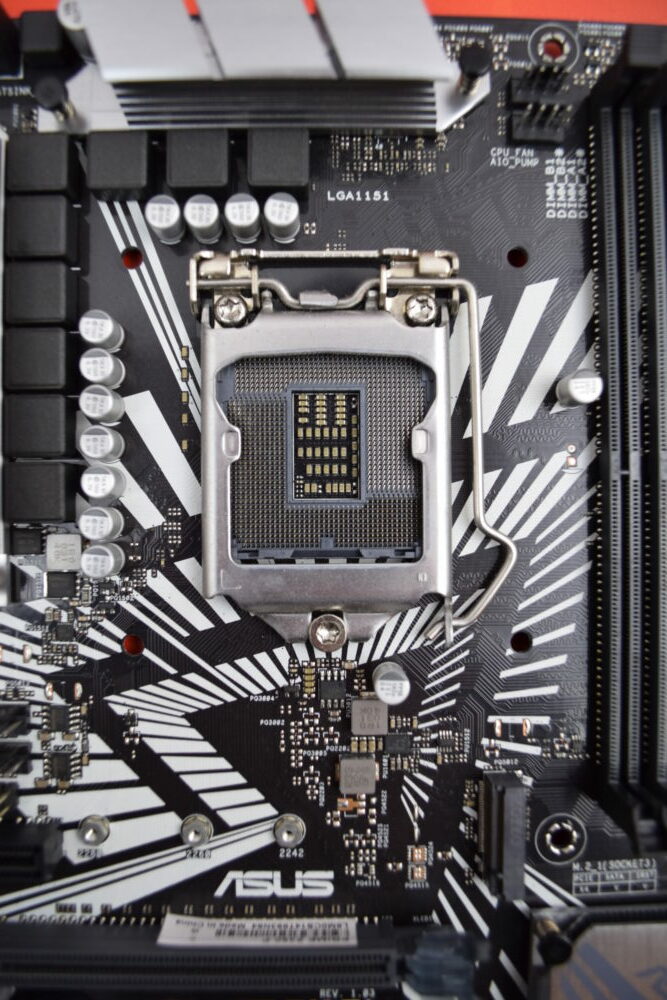

Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset

Intel® Z390

Memory

4 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* The maximum memory frequency supported varies by processor.

Graphic

Integrated Graphics Processor- Intel® UHD Graphics support

Multi-VGA output support : HDMI/DisplayPort   ports

– Supports HDMI with max. resolution 4096  x 2160  @ 30 Hz

– Supports DisplayPort with max. resolution 4096  x 2304  @ 60  Hz

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Multi-GPU Support

Supports AMD CrossFireX™ Technology

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)

1 x PCIe 3.0/2.0 x16 (max at x4 mode)

4 x PCIe 3.0/2.0 x1

1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT and Intel® CNVi (Integrated Wi-Fi/BT) module*

*For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.

* The Wi-Fi/BT module is purchased separately

Storage

Intel® Z390 Chipset :

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)

4 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology supports

Intel® Optane™ Memory Ready

Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1)

PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card

LAN

Realtek® RTL8111H, support LANGuard

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC

– Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

– LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.

– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB

Intel® Z390 Chipset :

2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)

Intel® Z390 Chipset :

8 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 4 at mid-board)

Intel® Z390 Chipset :

3 x USB 2.0/1.1 port(s)

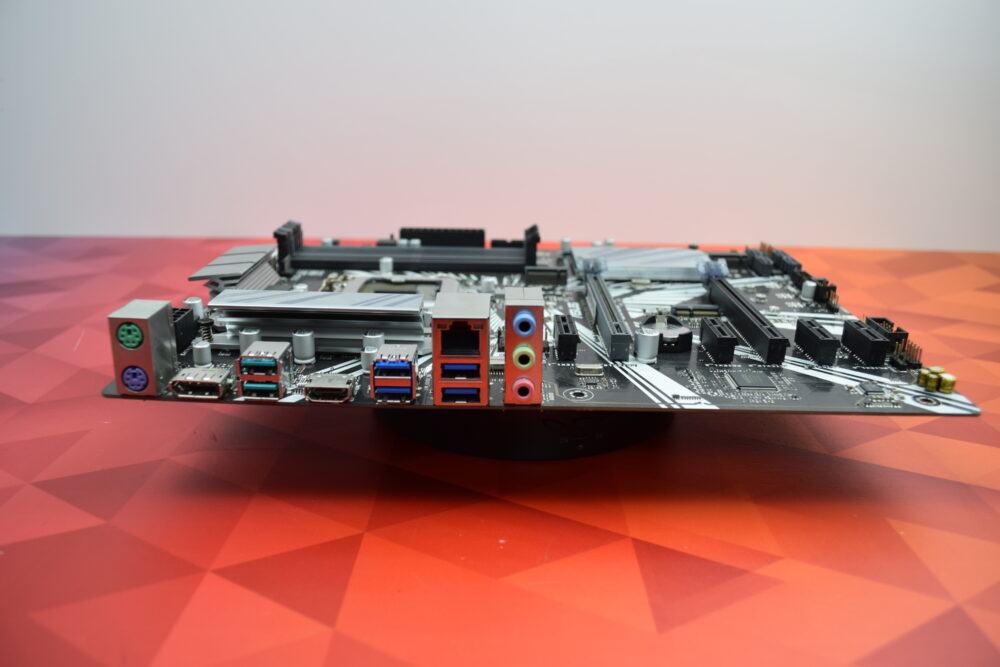

Back I/O Ports

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.2 Gen 2 Type-A,

4 x USB 3.2 Gen 1 Type-A

3 x 8-channel Audio I/O

Internal I/O Ports

1 x Lighting Control RGB Strip Header(s)

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)

1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x M.2 Socket 1 with E key, type 2230 Wi-Fi/BT device support or Intel® CNVi (Integrated Wi-Fi/BT) module

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)

1 x COM port(s) connector(s)

4 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

2 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x S/PDIF out header(s)

1 x 8-pin EATX 12 V Power connector

1 x 24-pin EATX Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x MemOK! II switch(es)

1 x Clear CMOS jumper(s)

1 x System panel connector

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

O S

Windows® 10 64-bit

Form Factor

ATX ；12.0  inch x 9.2  inch ( 30.5  cm x 23.4  cm )
