This is a motherboard only, without any accessories (driver disc, manual, cables, I/O shield, expansion cards etc. are not included)

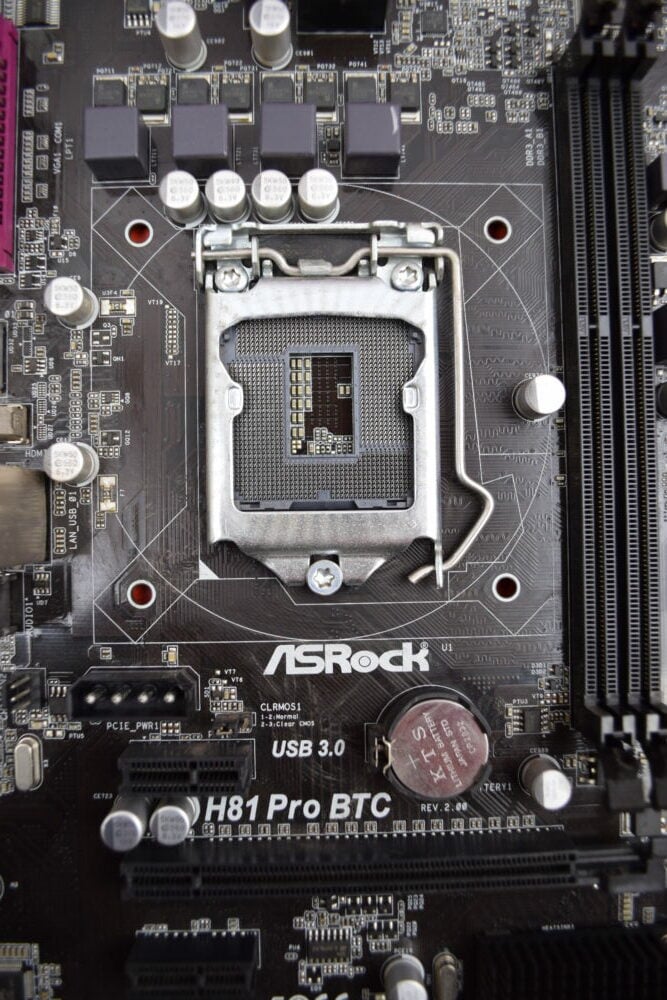

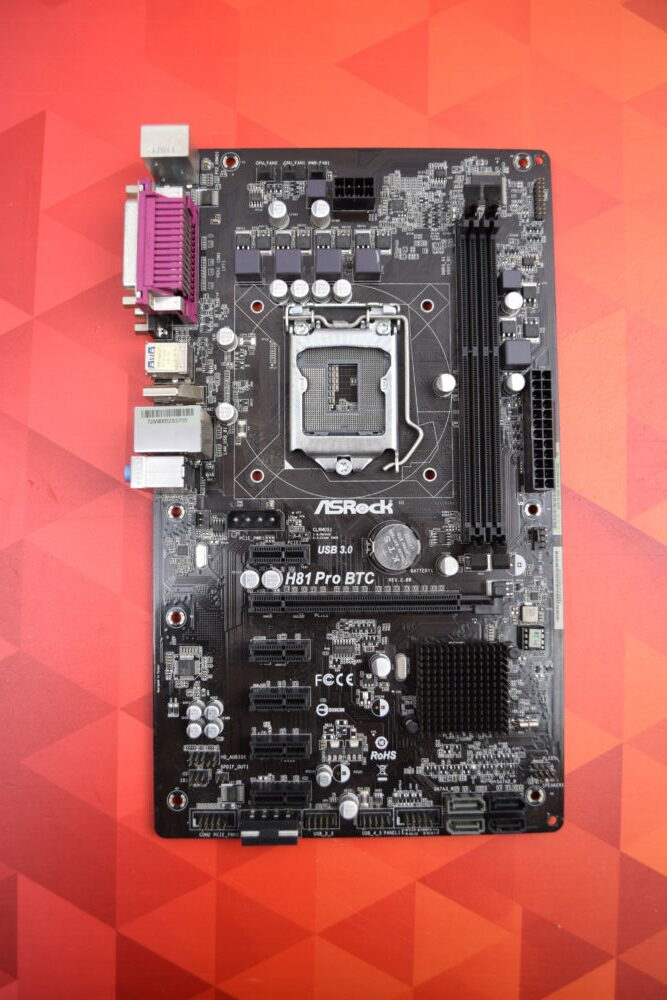

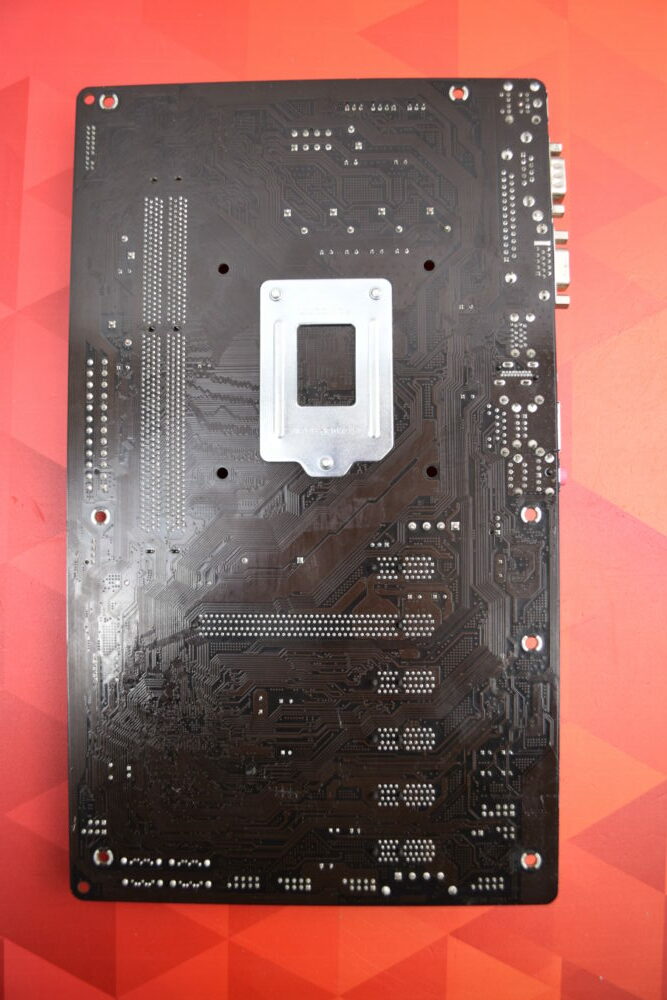

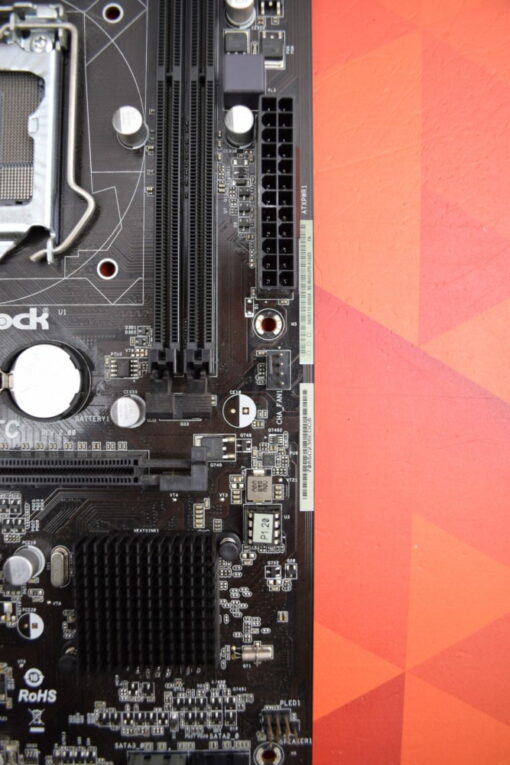

H81 Pro BTC R2.0
- ASRock Super Alloy
- Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
- All Solid Capacitor design
- Digi Power, 4 Power Phase design
- Supports Dual Channel DDR3 1600
- 1 PCIe 2.0 x16, 5 PCIe 2.0 x1
- Graphics output options: D-Sub, HDMI
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- 2 SATA3, 2 SATA2
- 2 USB 3.1 Gen1, 6 USB 2.0 (4 Front, 2 Rear)
- Realtek Gigabit LAN
-
Unique FeatureASRock Super Alloy
– High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop -
CPU– Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
– Digi Power design
– 4 Power Phase design
– Supports Intel® Turbo Boost 2.0 Technology -
Chipset– Intel® H81
-
Memory– Dual Channel DDR3 Memory Technology
– 2 x DDR3 DIMM Slots
– Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. -
BIOS– 32Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 1.1 Compliant wake up events
– SMBIOS 2.3.1 support
– CPU, DRAM, PCH 1.05V Voltage multi-adjustment -
Graphics– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 512MB**
– Dual Graphics Output: support HDMI and D-Sub ports by independent display controllers
– Supports HDMI Technology with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP with HDMI Port
– Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**The size of maximum shared memory may vary from different operating systems.
***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
-
Audio– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
– Supports Surge Protection (ASRock Full Spike Protection) -
LAN– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-WAN
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE -
Slots– 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode)
– 5 x PCI Express 2.0 x1 Slots -
– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
– 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug -
Connector– 1 x IR Header
– 1 x COM Port Header
– 1 x Power LED Header
– 1 x TPM Header
– 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 2 x PCIe Power Connectors
– 1 x Front Panel Audio Connector
– 1 x SPDIF Out connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) -

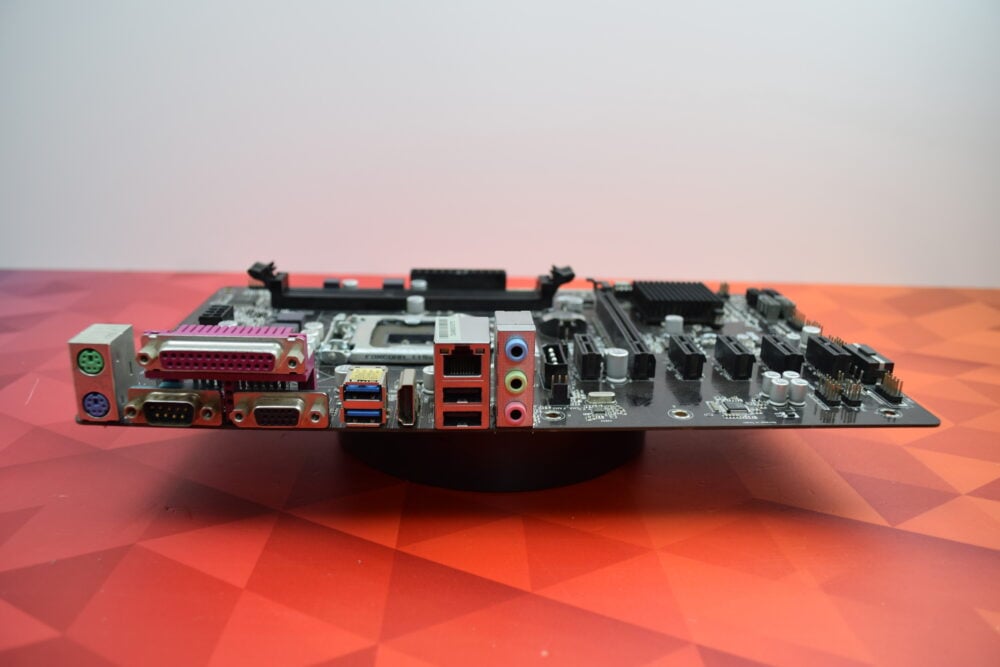

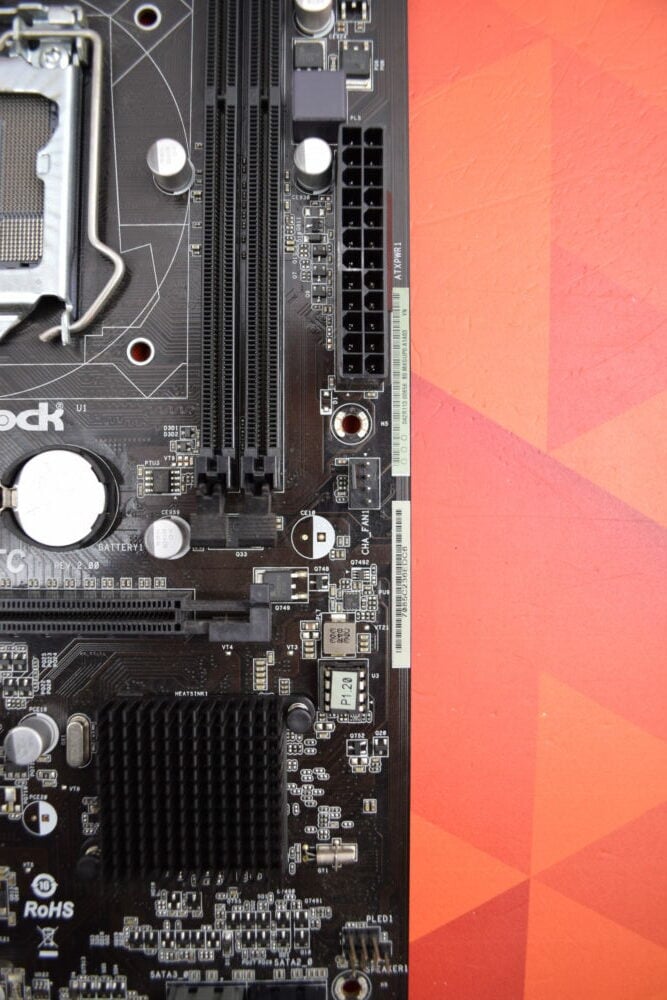

Rear Panel I/O– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x Serial Port: COM1
– 1 x Parallel Port (ECP/EPP support)
– 1 x D-Sub Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Line in / Front Speaker / Microphone -
Software and UEFISoftware
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast LAN
– ASRock Fast Boot (Fast Boot, Restart to UEFI)*
UEFI
– ASRock Interactive UEFI
– ASRock UEFI Guide
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock UEFI Tech Service
– ASRock Dehumidifier
– ASRock Easy Driver Installer*These utilities can be downloaded from ASRock Live Update & APP Shop. -
Support CD– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
-
Accessories– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables -
Hardware Monitor– CPU, Chassis temperature sensing
– CPU, Chassis, Power Fan Tachometer
– CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore -
Form Factor– ATX Form Factor: 12.0-in x 7.0-in, 30.5 cm x 17.8 cm
– All Solid Capacitor design -
OS
– Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit*
*For the updated Windows® 10 driver, please visit ASRock’s website for details. -
Certifications– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
