Vertyanov Sucessor Programmer for SPI FLASH memory and EC , new gen laptops

SUCCESSOR – Programmer for SPI FLASH memory and EC firms ENE/ITE/MEC/NUVOTON/EXPLORE

Output control signal levels 1v8 and 3v3. ESD protection is already installed.

Created on the basis
32-bit ARM® Cortex®-M4 RISC processor 120 MHz USB_FS
and GoWin FPGA

The Vertyanov Sucessor Programmer is available to update the firmware of the MCU and FPGA. When functionality is added, an update is released, and all users download and update it for free. No additional payments need to be made.

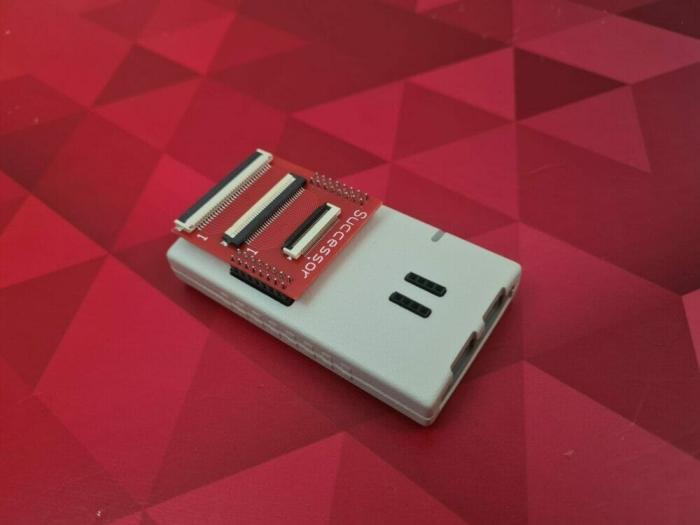

The SUCCESSOR kit consists of a module in a case (see photo), an adapter with 05/08/1mm connectors (as on the 3rd version of the Vertyanov_JIG programmer) and a basic set of 05mm(30/32pin)/08mm(26/30)/1mm(24/ 26/28/30/32)
IMPORTANT!! Socket for SPI FLASH and USB cables (2 pieces TYPE_C) are not included in the package!
As in the case of the 3rd version of the programmer, to work with the EC, you will need a second USB cable to connect the GND of the programmer and the MB.
